IJS Judges Stand
Cedar Rapids Ice Arena (UGLR) - October 2007

[ Ann Arbor 2007 ] [ Rockford 2007 ] [ Milwaukee 2007 ] [ Liberty 2007 ] [ Detroit 2007 ] [ Onyx 2007 ] [ UGLR 2007 Iowa ] [ Mid Amer 2008 ] [ AN 2008 Lk Placid ] [ Broadmoor Op 2008 ] [ Porter 2008 ] // Click any image to see a larger version

Full Panel

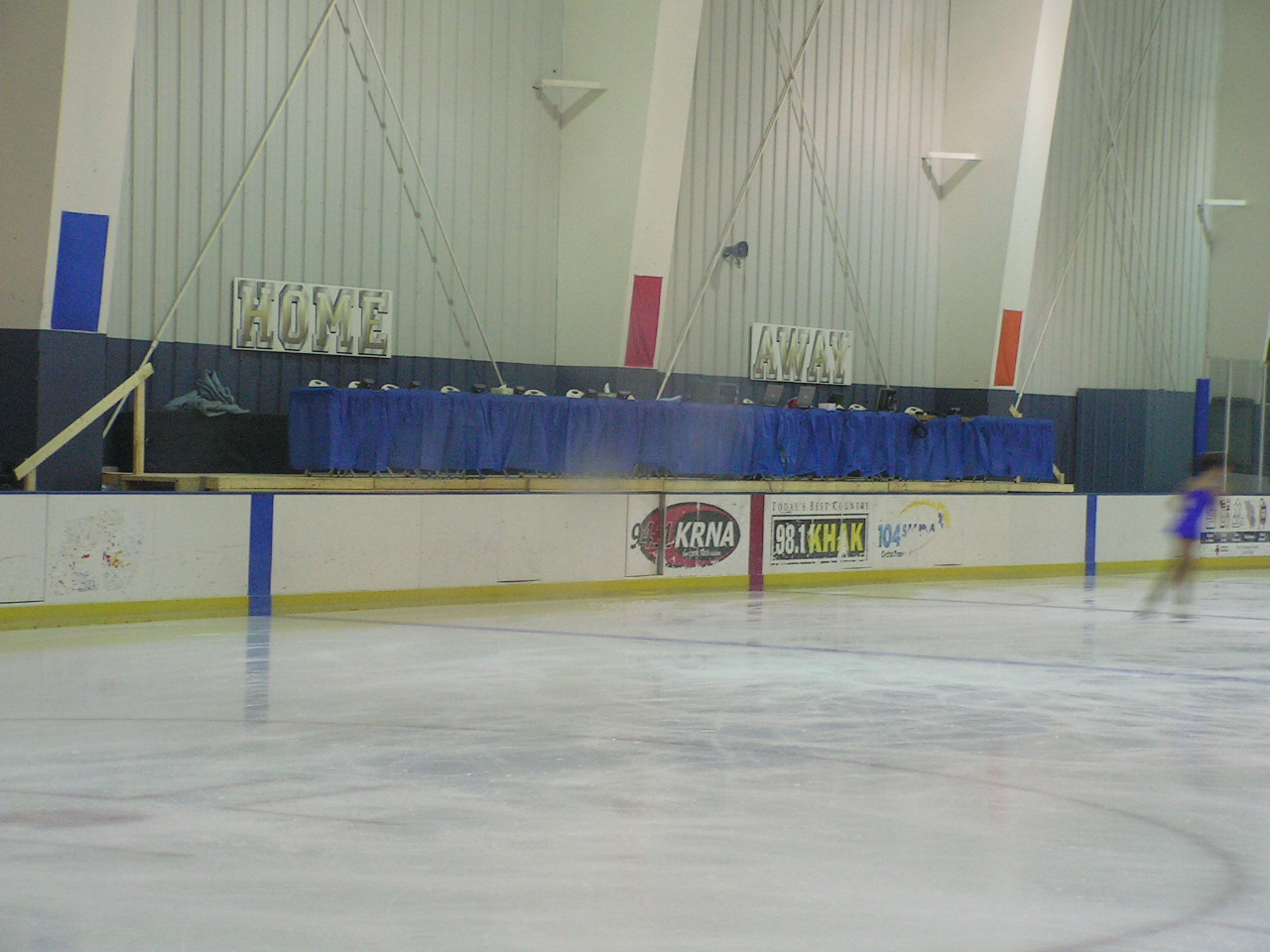

Full stand - 6 judges, Referee, 2 accountants, DEO, TC, TS, ATS, Video.
36 feet long - 6 6-foot tables.

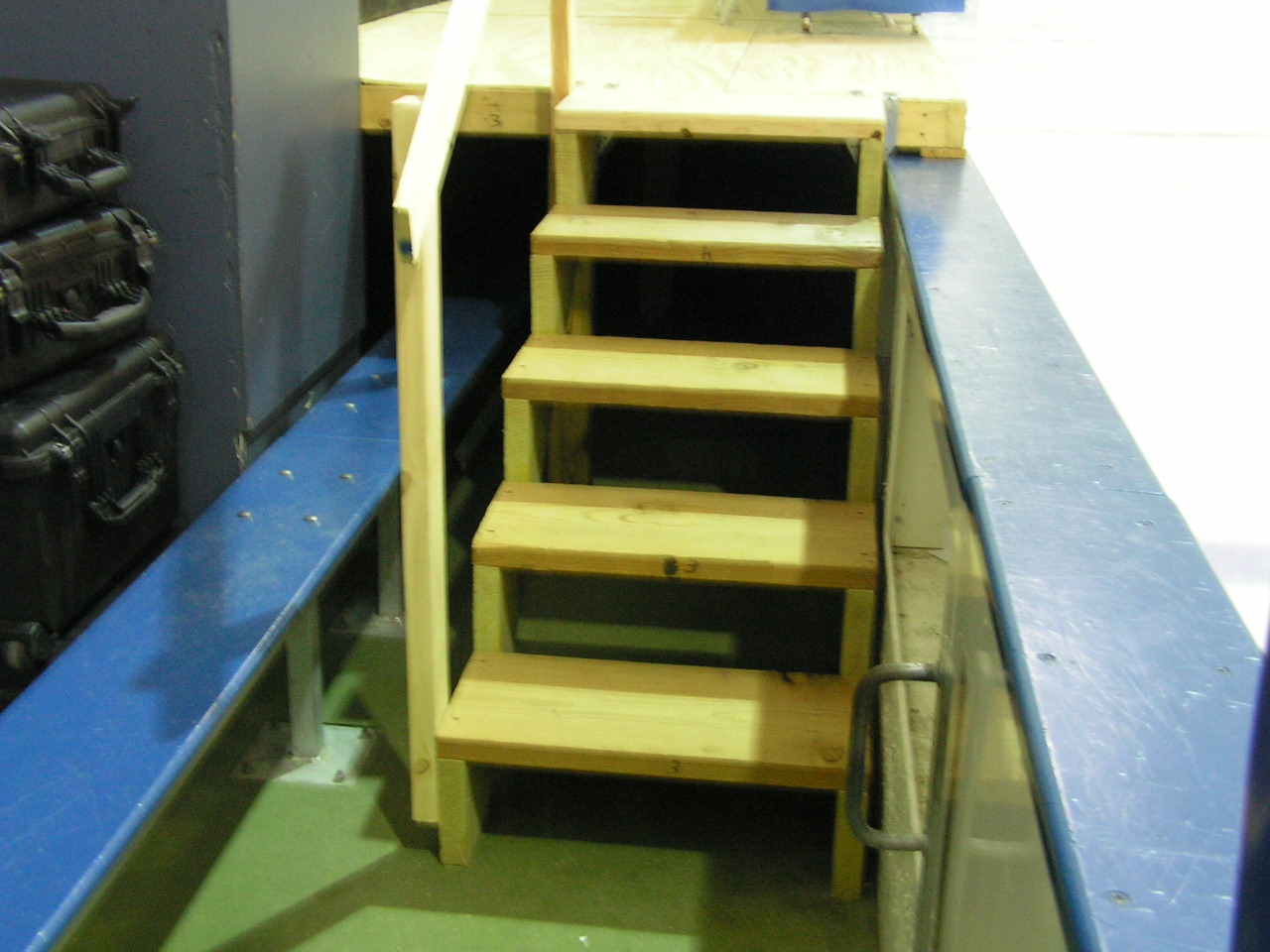

Stairs
End stair detail

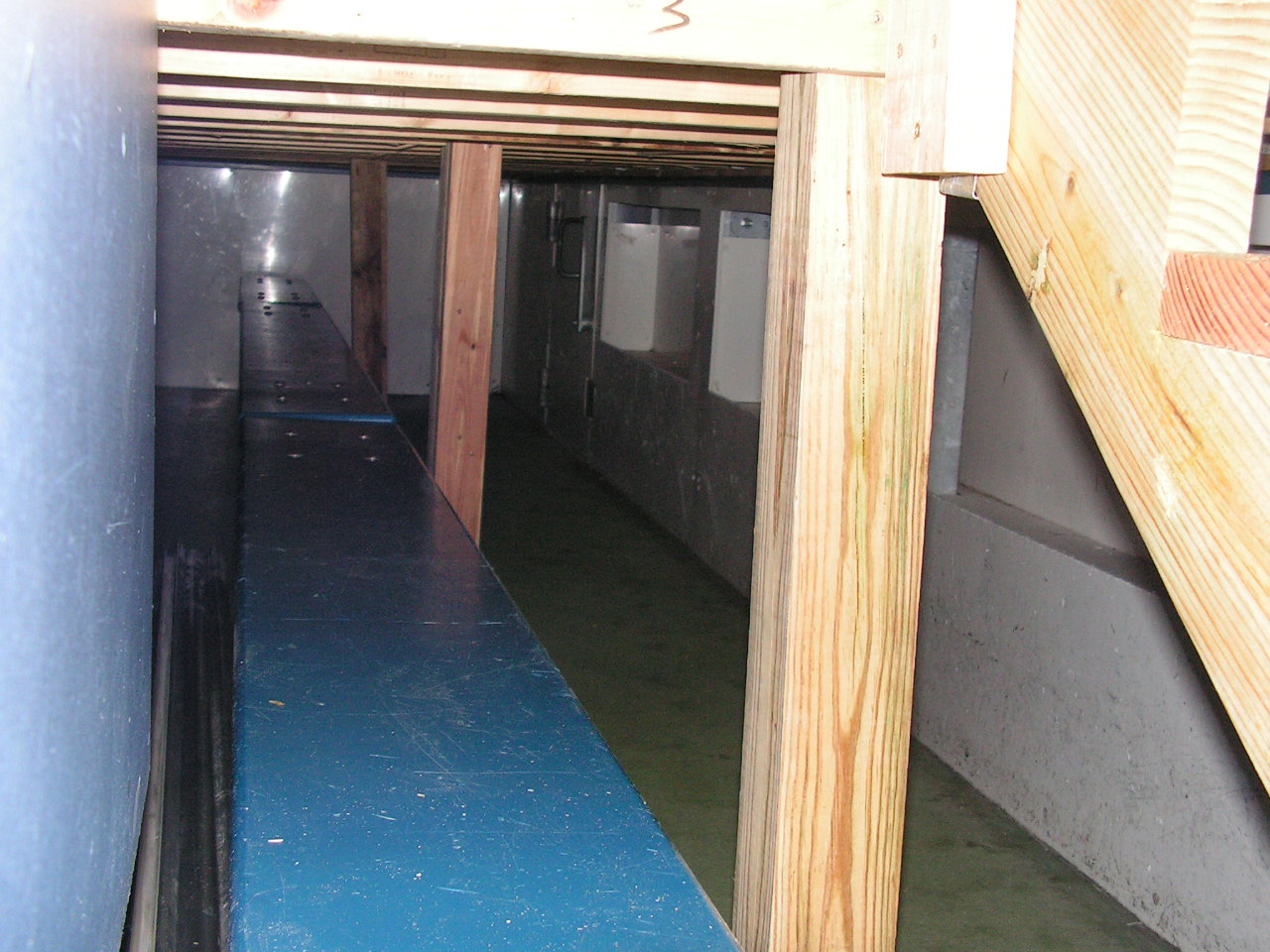

Supports under platform
4-by-4 supports under the platform

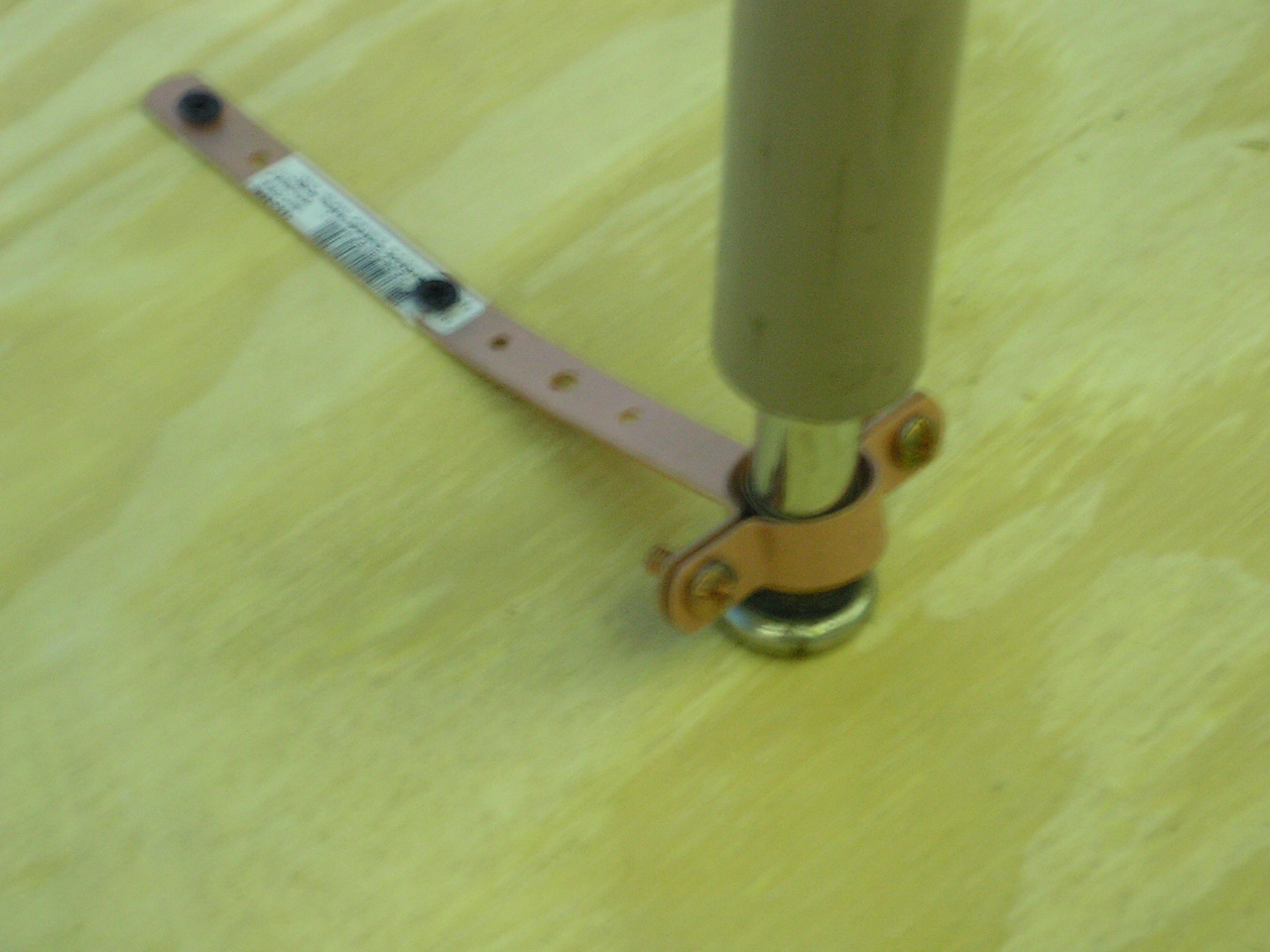

Strap on table leg
Strap from hardware store holds the tables in place

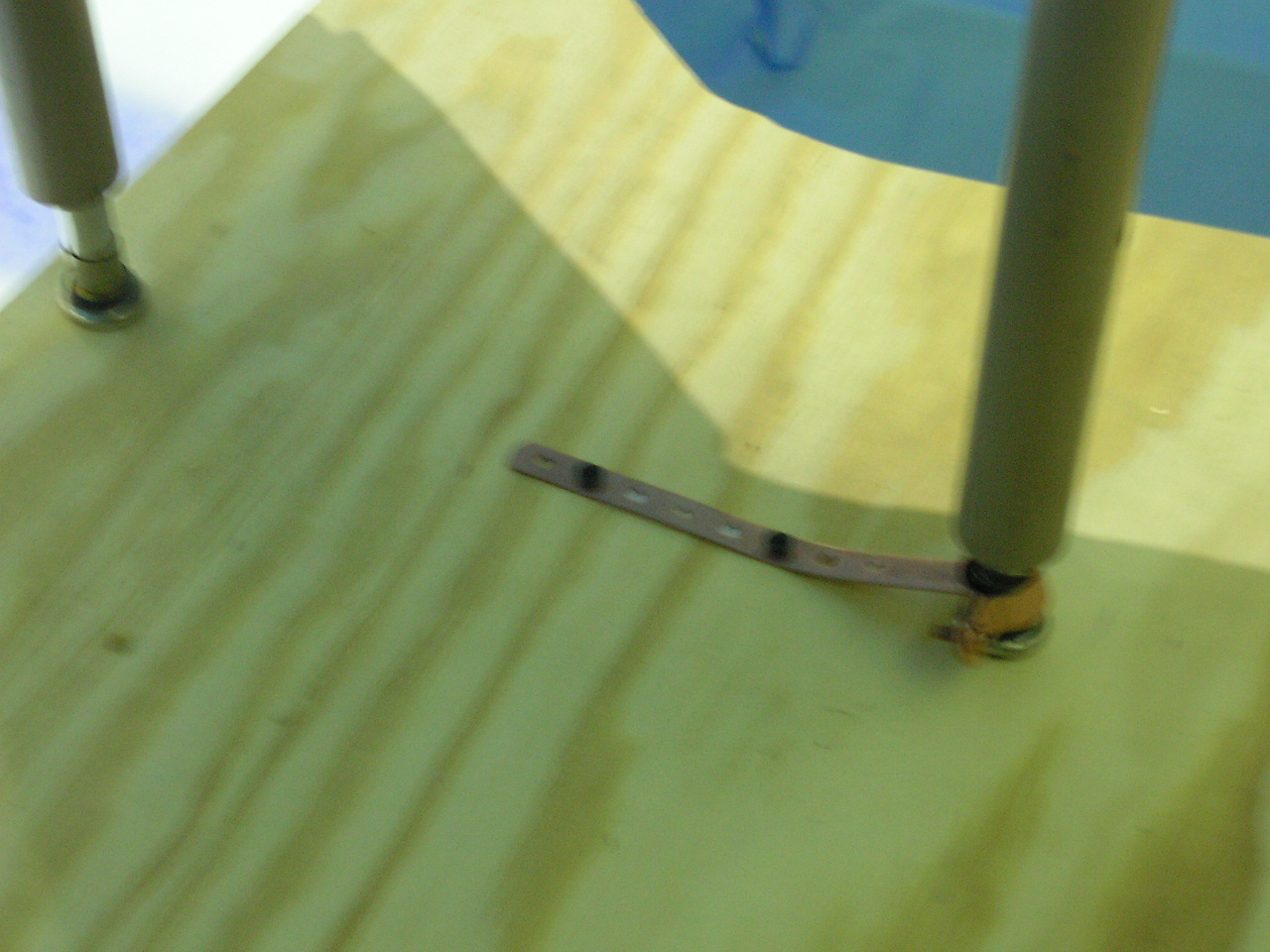

Strap on table leg
Detail view of the simple table strap

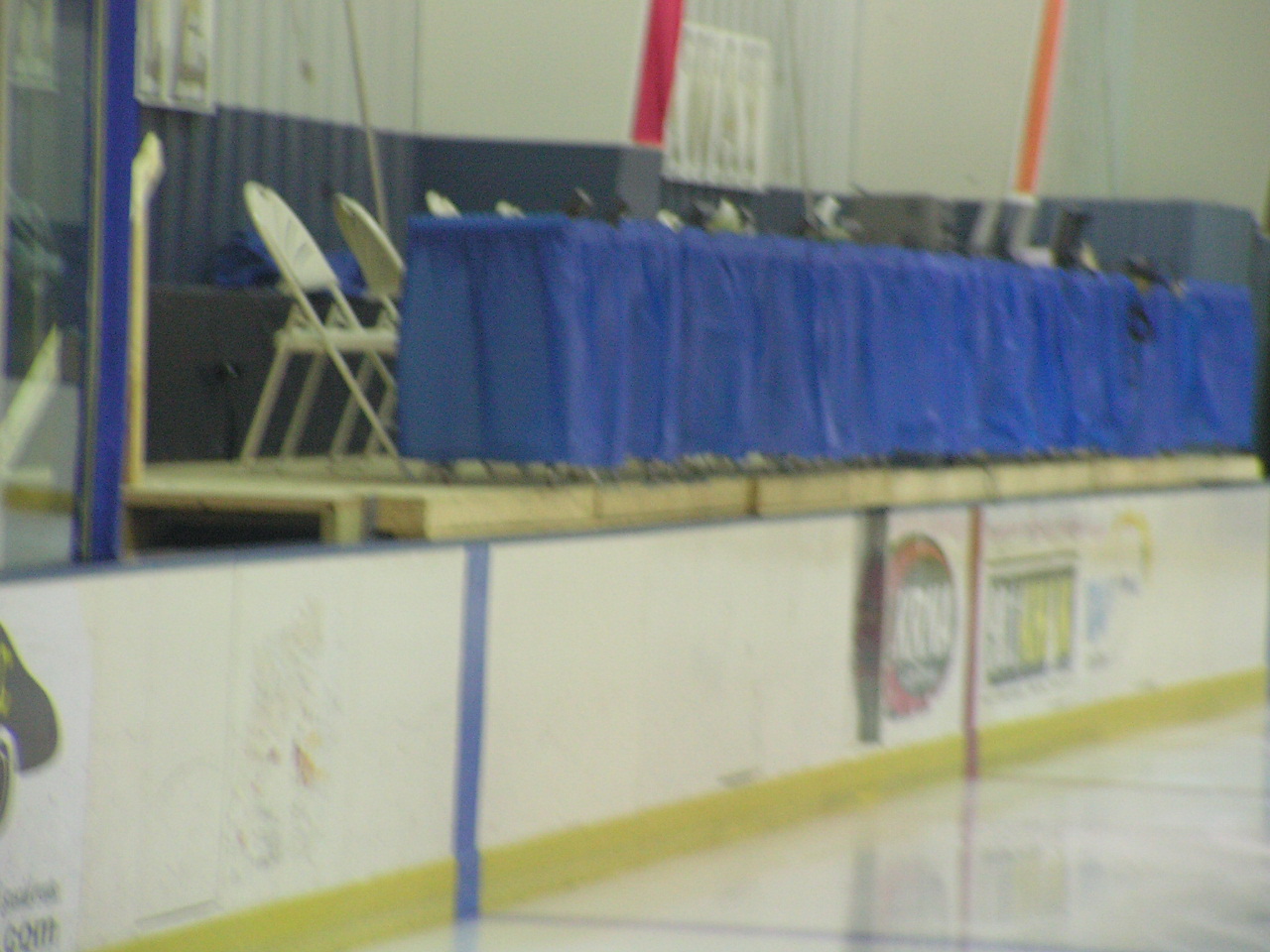

End view
End of platform. Half-inch plywood on 2-by-4 base.
