IJS Judges Stand
Onyx Rochester Ice Arena August 2007

[ Ann Arbor 2007 ] [ Rockford 2007 ] [ Milwaukee 2007 ] [ Liberty 2007 ] [ Detroit 2007 ] [ Onyx 2007 ] [ UGLR 2007 Iowa ] [ Mid Amer 2008 ] [ AN 2008 Lk Placid ] [ Broadmoor Op 2008 ] [ Porter 2008 ] // Click any image to see a larger version

Full Panel
Full stand - Referee, 5 Judges, 2 accountants, DEO, TC, TS, ATS, Video.
32 feet long - 4 8-foot tables. 		Steps - Right end

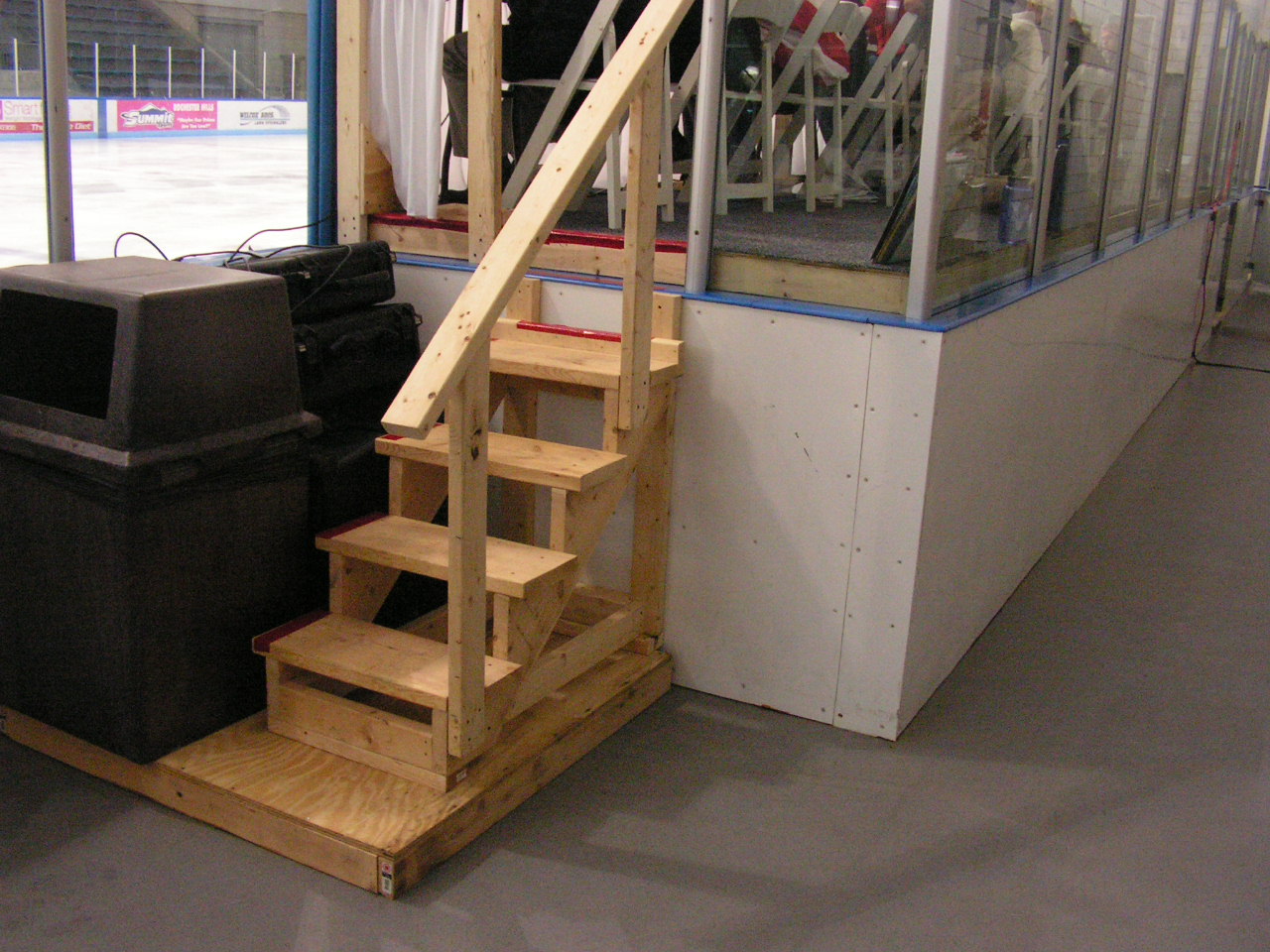

Steps - Right end. Red duct tape marks each step. 		End view of platform

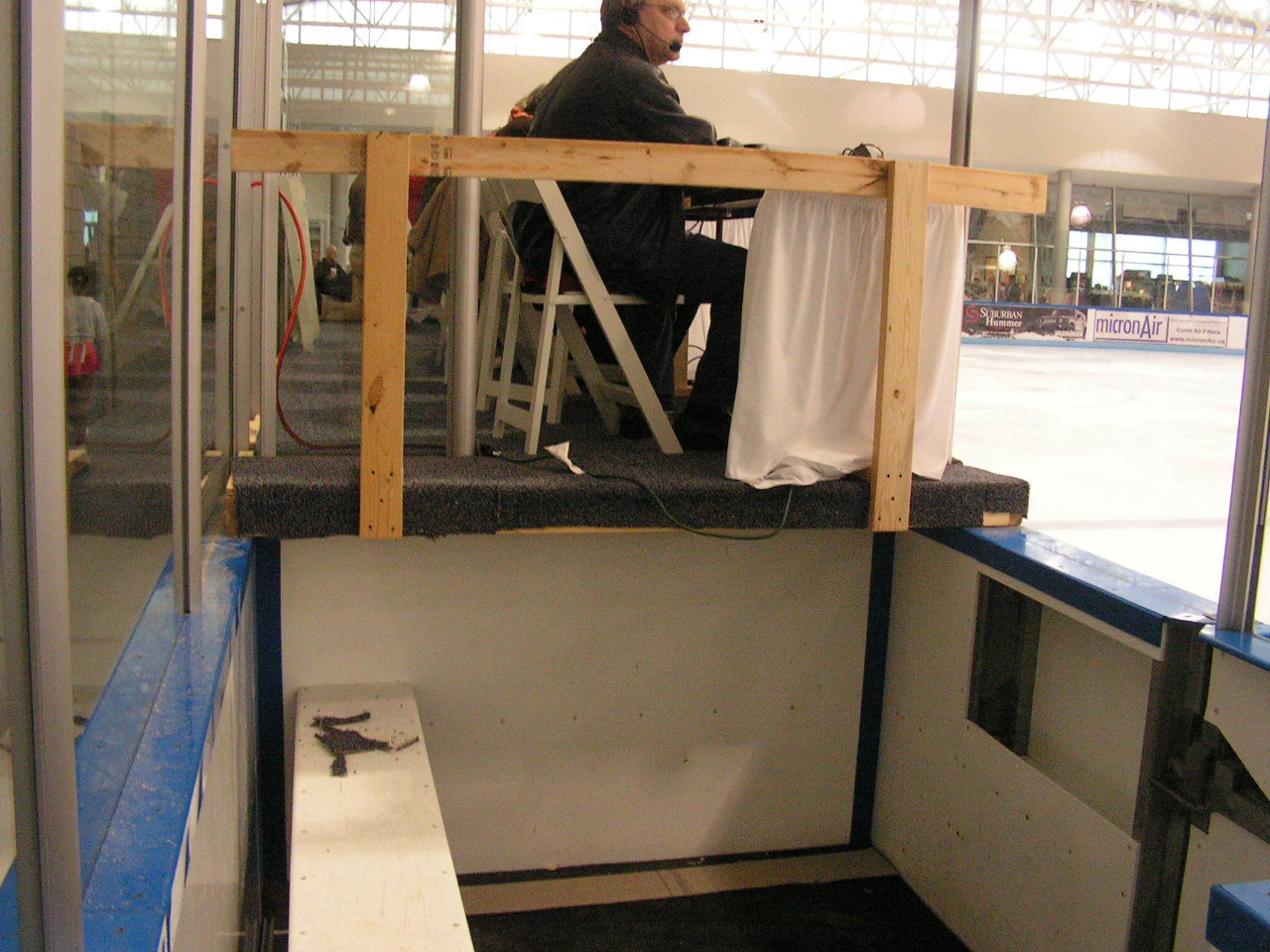

Platform from the Penalty Box. Built out of 2x4s. 32 feet long (could be extended to 36 feet if using 6 judges.)

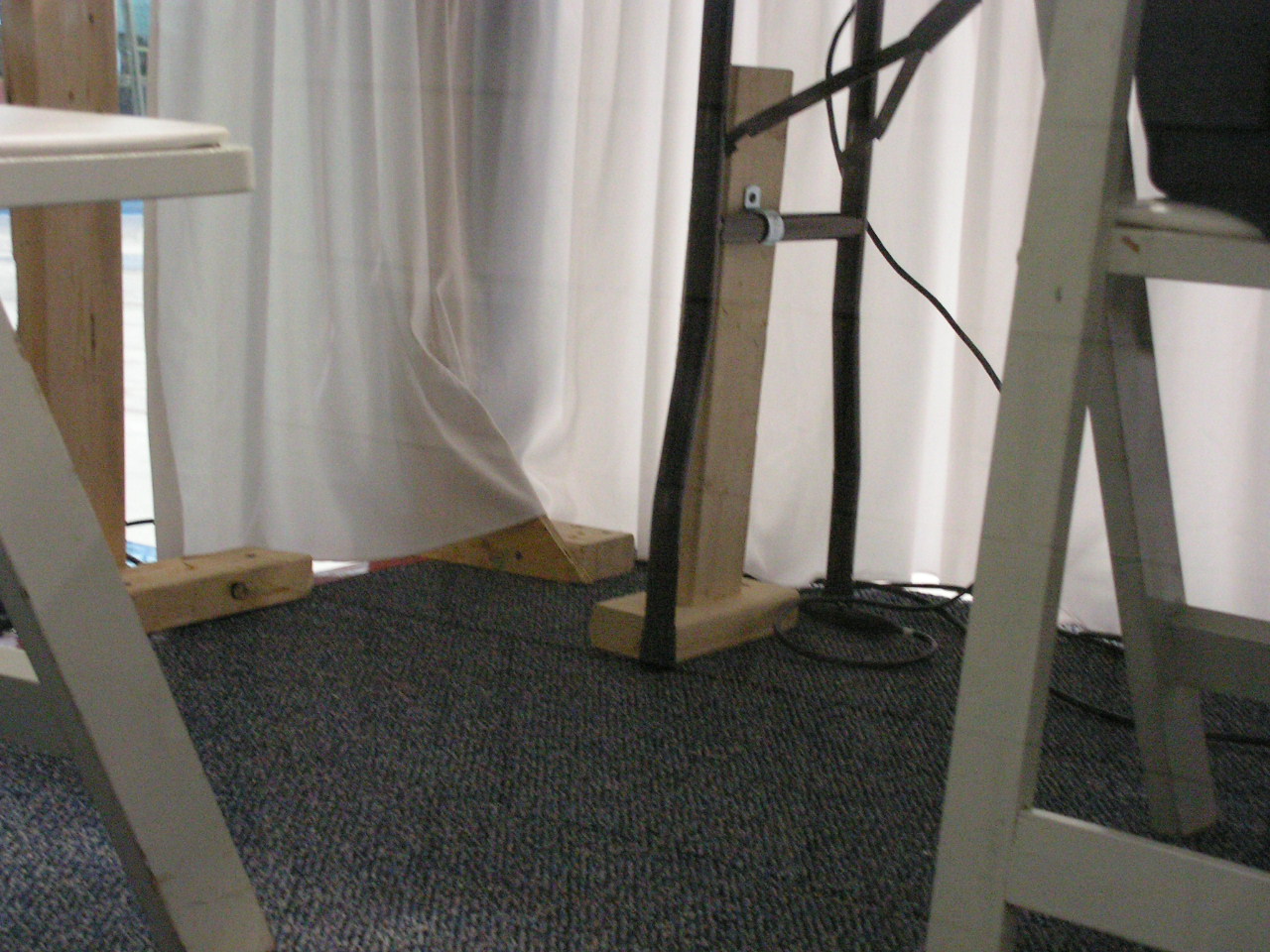

Table bracket
Bracket holding table legs. Very good to prevent table movement.
